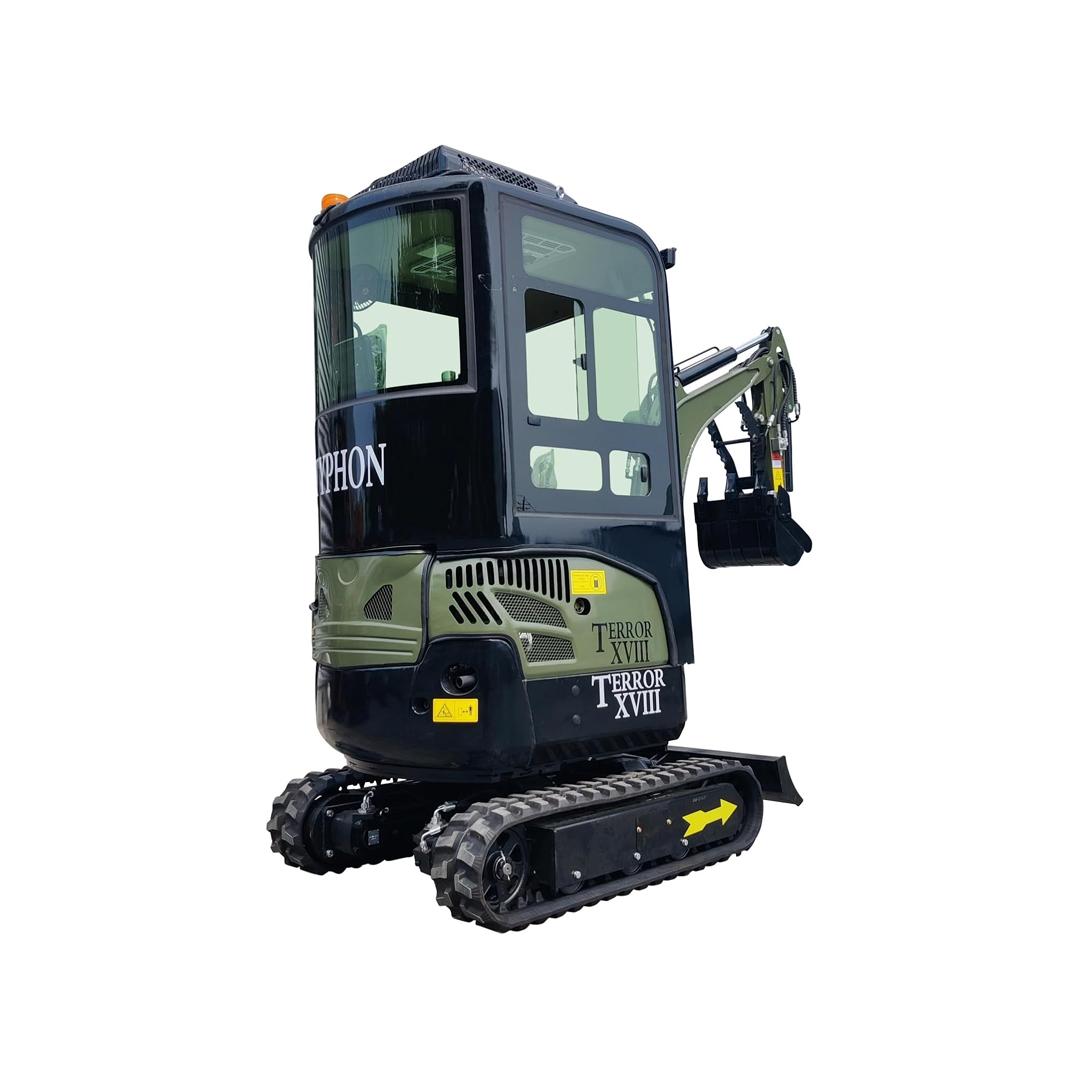

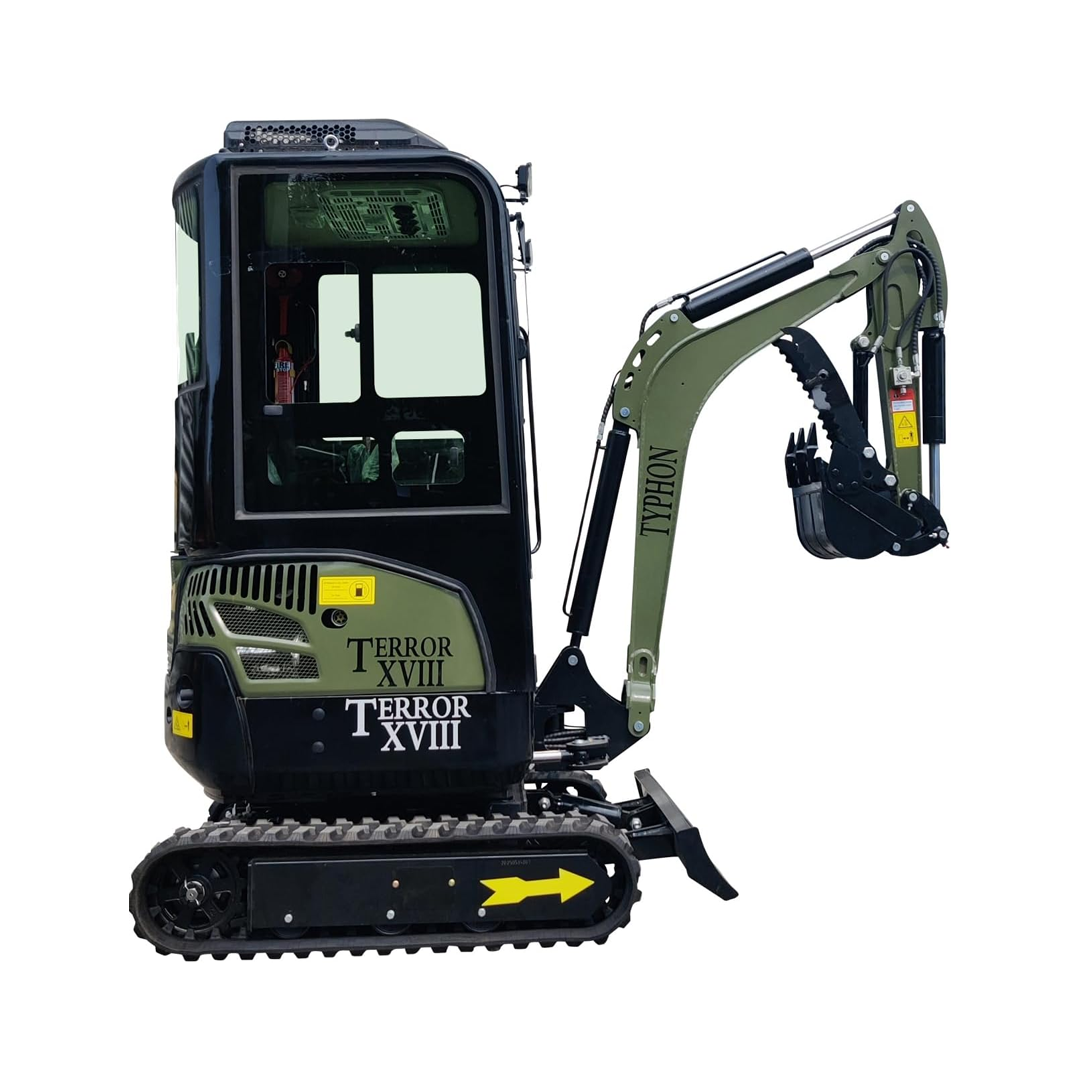

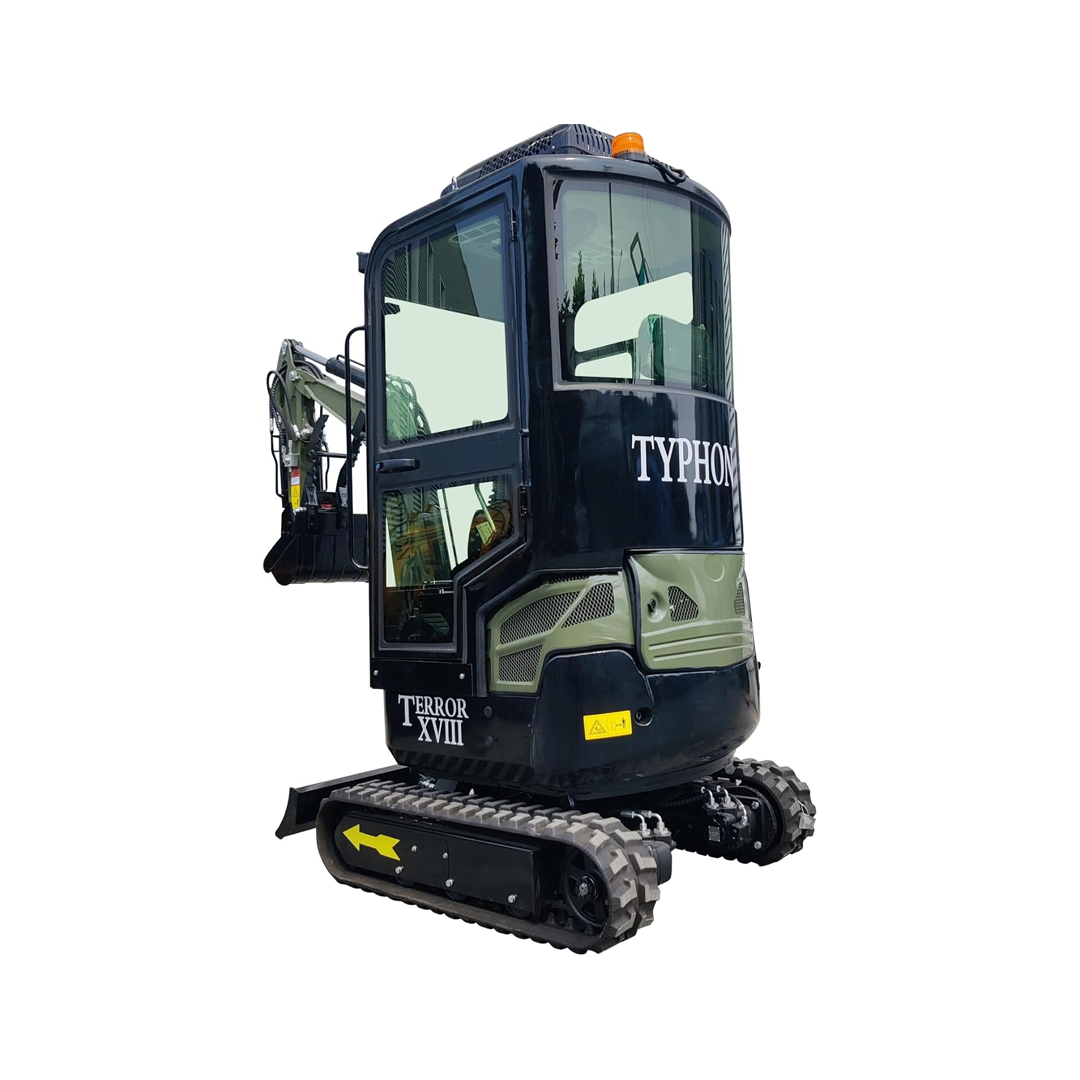

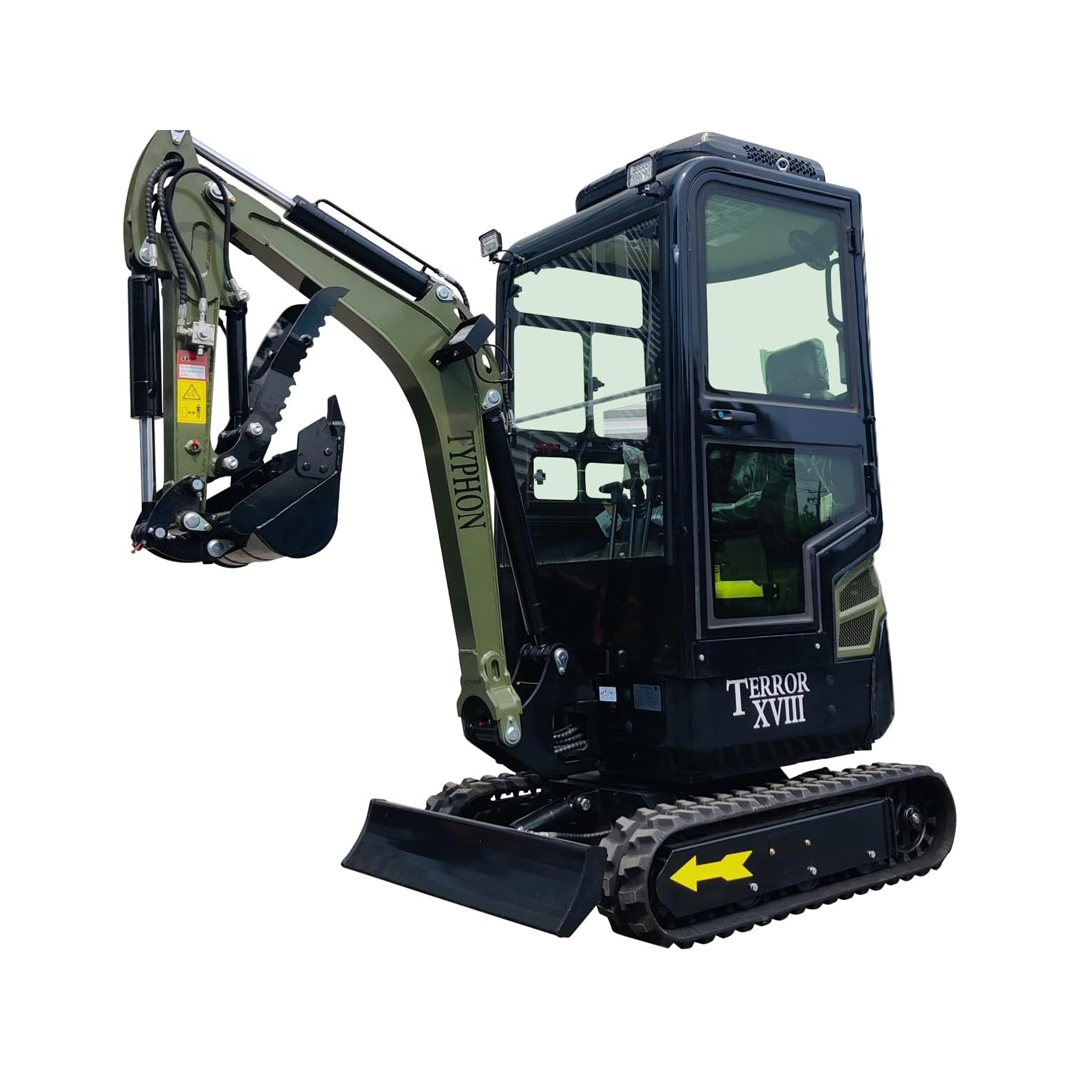

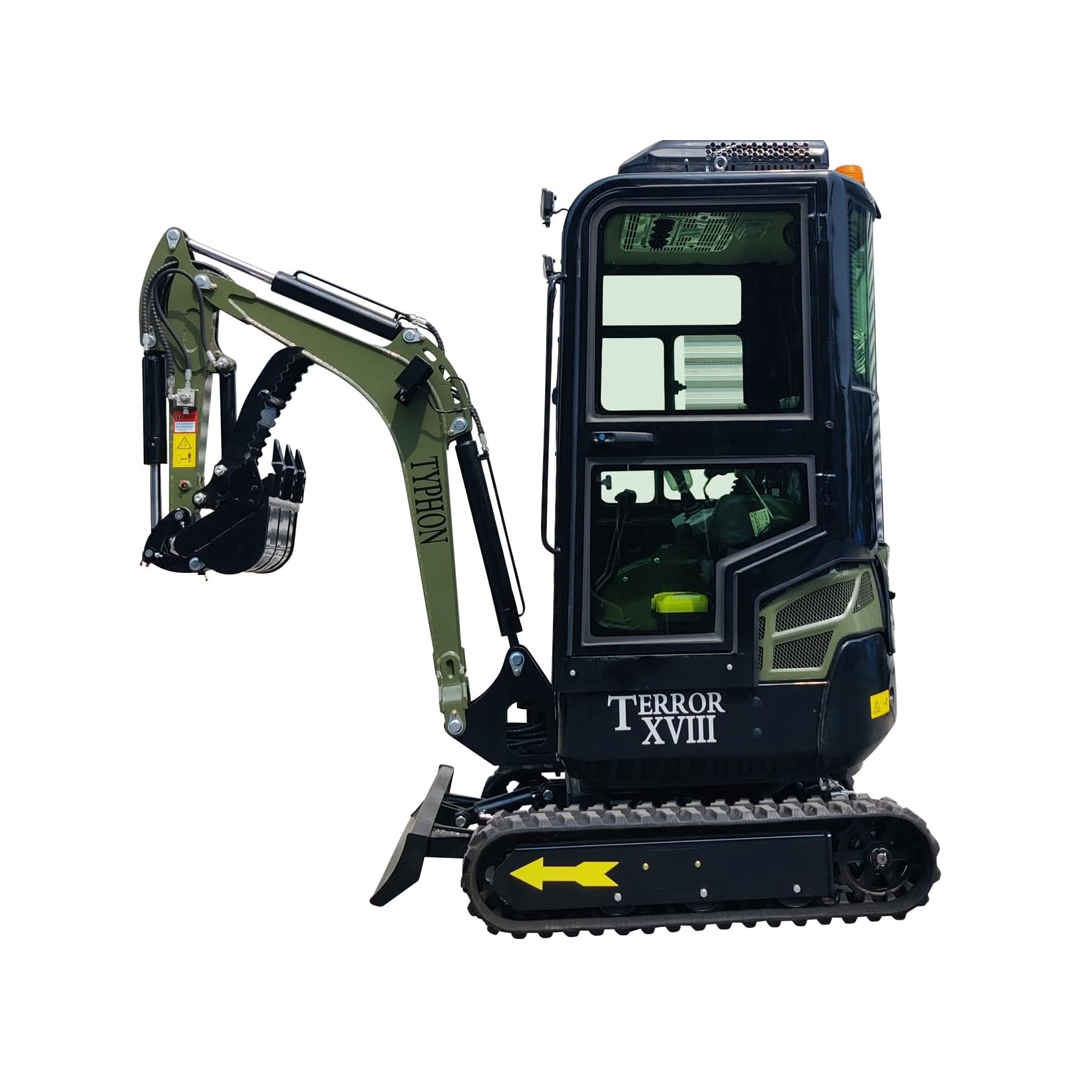

Micro-Power, Maximum Range: The Orchard Specialist

The Typhon Micro-Digger is the ultimate solution for agricultural entrepreneurs and specialized contractors requiring a machine that is simple, compact, and flexible. Specifically engineered for challenging access points, this 800 kg (1760 lb) excavator is perfectly suited for orchards, vineyards, and small fields where larger equipment cannot be operated. Powered by the reliable Kubota D902 Diesel Engine, this micro-machine delivers unexpected power (up to 20.4 HP) with minimal fuel consumption, ensuring increased productivity per tank. This investment guarantees access to narrow spaces for digging trenches, fertilizing, and weeding that previously required costly manual labor.

1. Ideal for Narrow Spaces: Simple, compact, and flexible design allows operation in small fields and orchards like kiwi fruit, vineyards, and orange groves.

2. Kubota Diesel Efficiency: The 3-cylinder, water-cooled D902 engine provides excellent power with minimal fuel consumption, maximizing your operational budget.

3. Road-Surface Safe: Equipped with soft Rubber Tracks that allow you to operate both indoors and outdoors without worrying about damaging the road surface.




Key Performance Features

Kubota D902 Diesel Engine

Features a powerful 15.8 HP at 2200 RPM (with 20.4 HP maximum) water-cooled, 3-cylinder diesel engine.

Working Range

Achieves a maximum digging depth of 2060 mm (approx 6.7 ft) and a maximum digging height of 2580 mm.

Compact Dimensions

Overall machine width is 1100 mm (approx 43.3 inches) with a minimum ground clearance of 119 mm.

Precision Swing

Features a maximum 45 degrees (right) and 75 degrees (left) boom swing angle for highly agile offset digging.

Track Specifications

Equipped with 180 mm wide Rubber Track that has a ground length of 1050 mm.

Benefit-Driven Results

This machine is a high-torque, low-impact specialist that pays dividends through maximized access and efficiency.

1. Maximum Reach and Depth: The impressive 2060 mm digging depth allows for essential operations like installing utility lines and deep fertilizing in orchards.

2. Protection and Longevity: The boom inner bucket hoses are well protected, and the water-cooled engine provides outstanding resistance and durability, protecting your long-term investment.

3. Versatile Job Profile: Perfectly suited for a wide range of specialized work, including digging trenches, fertilizing, weeding, and basic construction works across farms, roads, and parks.




Full Technical Specifications

Detailed facts for your business analysis.

1. Model Name: Micro-Digger (Model TYPH-1802G)

2. Operating Weight: 800 Kilograms (1760 Pounds)

3. Engine: Kubota D902 Diesel (Water-Cooled, 3-Cylinder), 20.4 HP Max

4. Max Digging Depth: 2060mm (approx 6.7 ft)

5. Overall Width: 1100 mm

6. Max Digging Force: 7.5 KN (Derived from similar class models)

7. Key Materials: Aluminum, Stainless Steel (Derived from Item Details)

8. Swing/Travel Speed: 12 rpm / 2.2 km/h (Derived from similar class models)

TyphonMachines Assurance

As a certified Typhon reseller, we are your trusted supplier of heavy equipment based in the USA. We guarantee that every machine is authentic and built for lasting performance.

1. Certified Authenticity: You receive an original Typhon machine that is a product of Singapore design and assembled in China, ensuring cutting-edge technologies and robust production quality.

2. EPA Compliance: Engine meets U.S. EPA Tier 4 Final emission standards, ensuring regulatory compliance and environmental responsibility.

3. Dedicated Support: Our expert team and partnerships are always at your disposal to ensure continuous toughness, reliability, and performance.
